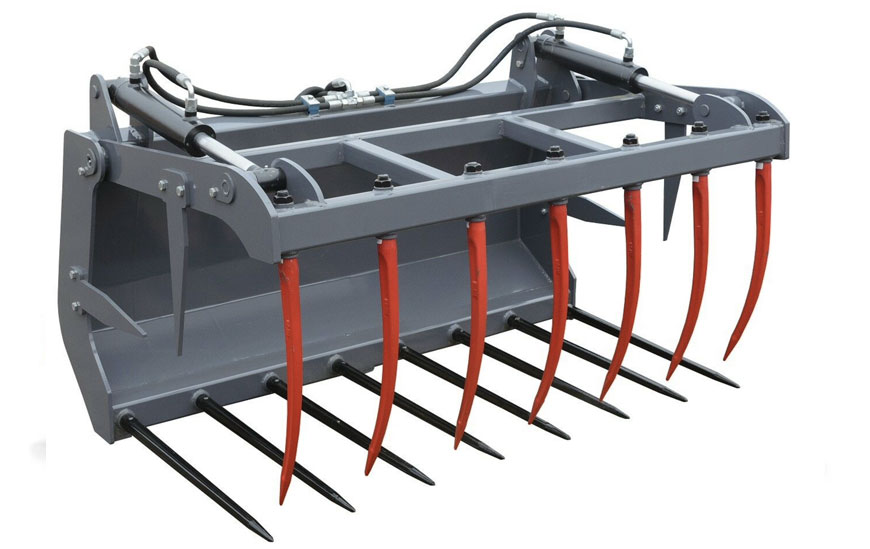

Muck grab with strengthened design by Agritrend LTD suitable for tractor loader and telehandler. Designed with greater volume and strength at each size to offer best value.
Bite opening height 1174mm (tip of bottom tine to tip of top tine when jaw open at max).
Top tine: Conus I, forged, curved, bushed, bolt-secured: 680mm (measured 580mm along the curve of the protruding portion) Bottom tine: Conus I, forged, straight, bushed, bolt-secured: Protruding length 700mm.
| Height of back-frame | 880mm |
| Front to back | 1000mm |
| Overall opening height | 1280mm |
| Hydraulic cylinders | X 2 63mm - 460/220mm |
4/04/2023
17/05/2023
Tines top and bottom, positioned for optimal penetration.
£15.00
£42.00
Enclosed back helps to keep the carriage and hydraulics clean, making this muck grab ideal for manure and silage handling.
